고압단조핏팅

고압단조핏팅 ( HIGH PRESSURE FORGED FITTING)
생산형태 :
종류 :
규격 :
타입및압력 :
주문생산 (ORDER MADE) 및주문자상표 (OEM) 생산
엘보우, 티, 커프링, 캡, 프러그, 부싱, 유니온, 아웃렛(소쿠레) 니플, 레듀서, 보스 등
1/8"(3mm) ~ 4"(100mm)
소켓용접형 - 3000LBS, 6000LBS, 9000LBS
나사연결형(NPT, PT) - 2000LBS, 3000LBS, 6000LBS
버트용접형 - SCH40, SCH80, SCH160 등
제원 및 사양
규격 :

재료 :


재료규격 :
도색 :
ASME B16.11-2001(REVISION OF ASME 16.11-1996)
MSS-SP-79,83,95,97
ASTM A105, A350LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H,
F317L, F321, F11, F22, F91, F51, F53, F55, F904L, F44)
Ø19 ~ Ø100 환봉
탄강 - 아연도금, 착색, … 발주자사양
스텐레스스틸 - 초음파세척
생산품 소개

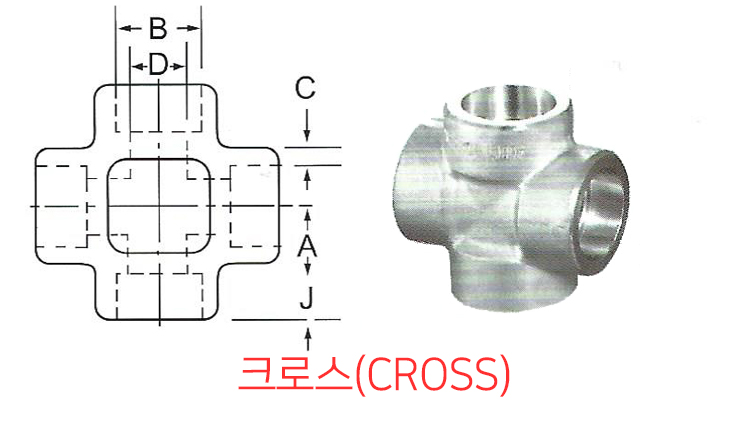

소켓용접형나사연결형파이프 규격
ASME B16.11-2005(ASME B16.11-2001의수정본)
관규격 소켓내경
Socket
Bore Dia.(2)
B		 본체내경 BoreDiameter of
Fitting(2)
D		 소켓두께
Socket Wall Thickness(1)
C		 본체두께
Body Wall Thickness
G		 소켓깊이
Depth of
Socket
Min.
J
DN Nom.
Pipe
Size		 관규격별칫수
Class Designation		 관규격별칫수
Class Designation		 관규격별칫수Class Designation
3000 6000 9000 3000 6000 9000
3000 6000 9000 Ave. Min. Ave. Min. Ave. Min. Min. Min. Min.
6 1/8 11.2
10.8		 7.6
6.1		 4.8
3.2		 3.18 3.18 3.96 3.46 2.41 3.15 9.5
8 1/4 14.6
14.2
10.0
8.5		 7.1
5.6		 3.78 3.30 4.60 4.01 3.02 3.68 9.5
10 3/8 18.0
17.6
13.3
11.8		 9.9
8.4		 4.01 3.50 5.03 4.37 3.20 4.01 9.5
15 1/2 22.0
21.8		 16.6
15.0		 12.5
11.0		 7.2
5.6		 4.67 4.09 5.97 5.18 9.35 8.18 3.73 4.78 7.47 9.5
20 3/4 27.6
27.2		 21.7
20.2		 16.8
14.8		 11.8
10.3		 3.90 4.27 6.96 6.04 9.78 8.56 3.91 5.56 7.82 12.5
25 1 27.2
33.9		 27.4
25.9		 21.5
19.9		 5.69 4.98 7.92 6.93 11.38 9.96 4.55 6.35 9.09 12.5
32 1-1/4 43.1
42.7		 35.8
34.3		 30.2
28.7		 23.5
22.0		 6.07 5.28 5.98 6.93 12.14 10.62 4:85 6.35 9.70 12.5
40 1-1/2 49.2
48.8		 41.6
40.1		 34.7
33.2		 28.7
27.2		 6.35 5.54 8.92 7.80 12.70 11.12 5.08 7.14 10.15 12.5
50 2 61.7
61.2		 53.3
51.7		 43.6
42.1		 38.9
37.4		 6.93 6.04 10.92 9.50 13.84 12.12 5.54 8.74 11.07 16.0
65 2-1/2 74.4
73.9		 64.2
61.2		 8.76 7.67 7.01 16.0
80 3 90.3
89.8		 79.4
76.4		 9.52 8.30 7.62 16.0
100 4 115.7
115.2		 103.8
100.7		 10.69 9.35 19.0
중심에서 소켓의 바닥면까지거리 길 이 공차 ± 바닥면 두께
End Wall
Thickness
K (Min).		 관규격

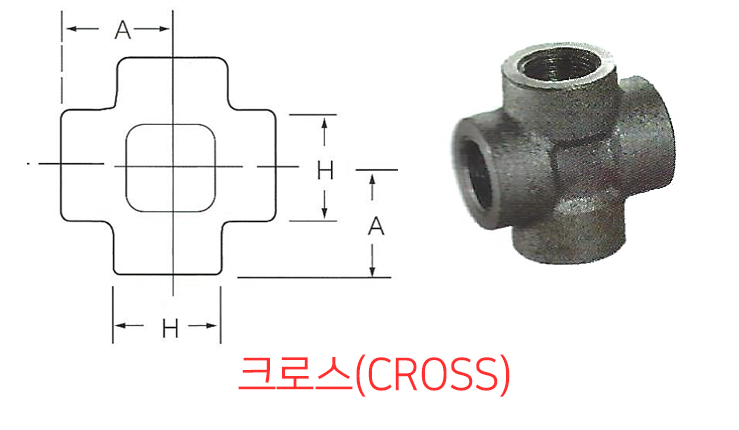

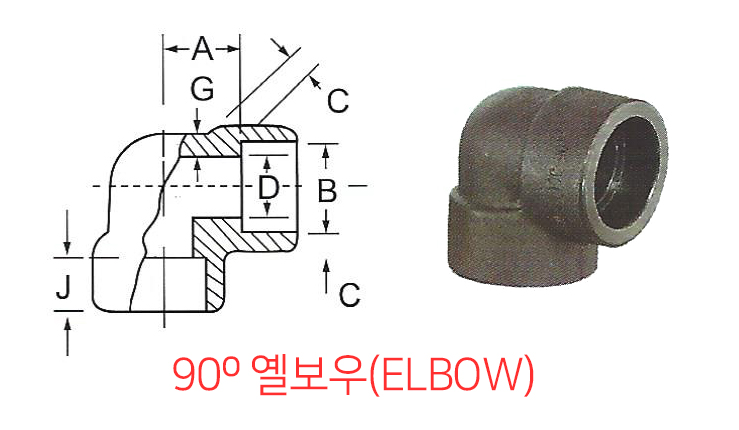

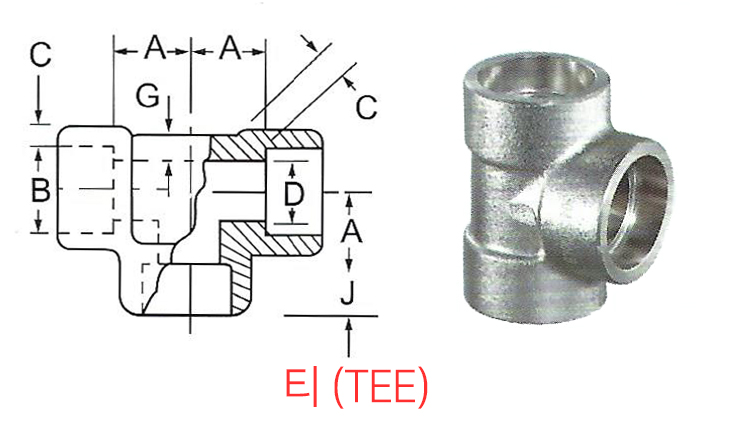

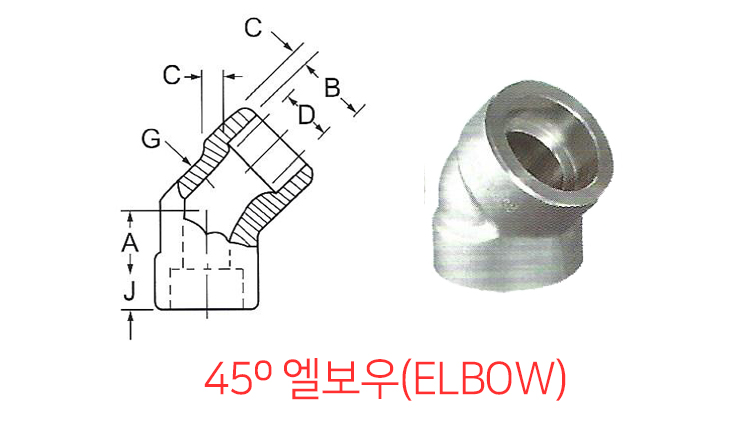

90° 엘보, 티, 크로스90° Elbows tees,Crosses 45° 엘보

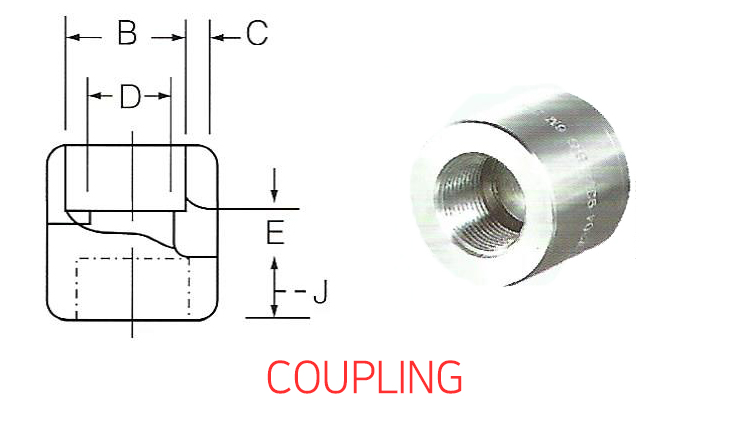

45° Elbows		 커프링 Couplings

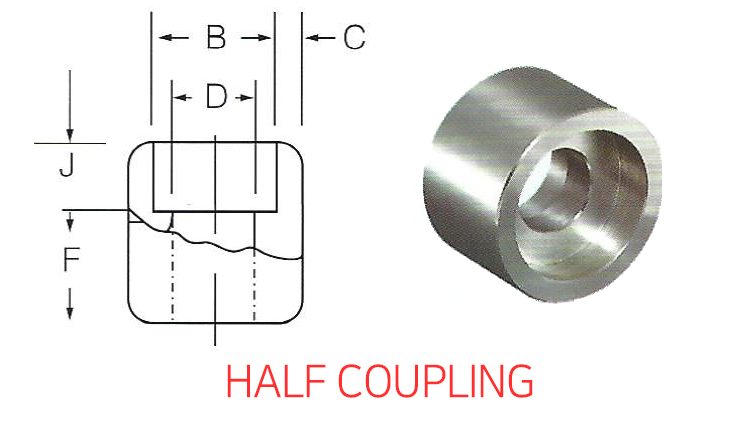

E		 숏커프링
Half
Couplings
F		 A E F Nom.
Pipe
Size		 DN
관규격별칫수
Designation		 관규격별칫수 관규격별칫수
3000 6000 9000 3000 6000 9000 3000 6000 9000
11.0 11.0 8.0 8.0 6.5 16.0 1.0 1.5 1.0 4.8 6.4 1/8 6
11.0 13.5 8.0 8.0 6.5 16.0 1.0 1.5 1.0 4.8 6.4 1/4 8
13.5 15.5 8.0 11.0 6.5 17.5 1.5 3.0 1.5 4.8 6.4 3/8 10
15.5 19.0 38.0 11.0 12.5 15.5 9.5 22.5 1.5 3.5 1.5 6.4 7.9 11.2 1/2 15
19.0 22.5 28.5 13.0 14.0 19.0 9.5 24.0 1.5 3.5 1.5 6.4 7.9 12.7 3/4 20
22.5 27.0 32.0 14.0 17.5 20.5 12.5 28.5 2.0 2.0 2.0 9.6 11.2 14.2 1 25
27.0 32.0 35.0 17.5 20.5 22.5 12.5 30.0 2.0 4.0 2.0 9.6 11.2 14.2 1-1/4 32
32.0 38.0 38.0 20.5 25.5 25.5 12.5 32.0 2.0 4.0 2.0 11.2 12.7 15.7 1/1/2 40
38.0 41.0 54.0 28.5 28.5 28.5 19.0 41.0 2.0 4.0 2.0 12.7 15.7 19.0 2 50
41.0 28.5 19.0 43.0 2.5 5.0 2.5 15.7 19.0 2 -1/2 65
57.0 32.0 19.0 44.5 2.5 5.0 2.5 19.0 22.4 3 80
66.5 41.0 19.0 48.0 2.5 5.0 2.5 22.4 28.4 4 100

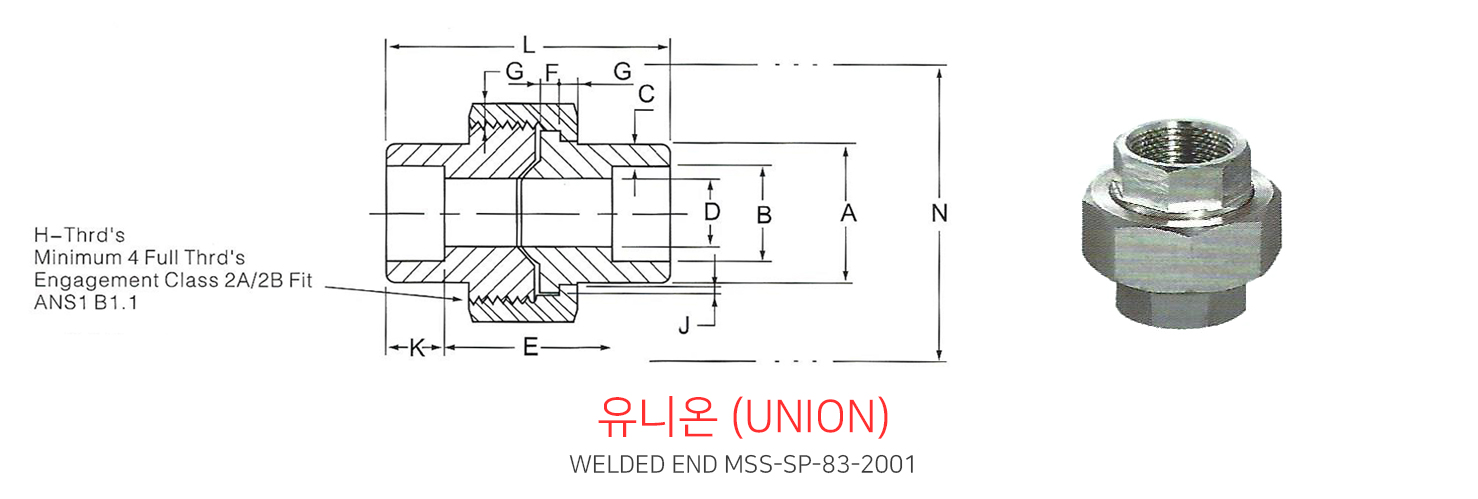

THREADED END MSS-SP-83-2001

관규격 A B C D E F G H J K D N
1/8 21.8 11.18
10.67		 3.18 7.59
6.07		 22.4
19.1		 3,18 3.18 16 9.7 41.4 41.4 50.8
1/4 21.8 14.61
14.10		 3.30 10.01
8.48		 22.4
19.1		 3.18 3.18 16 9.7 41.4 41.4 50.8
3/8 25.9 18.03
17.53		 3.51 13.28
11.76		 26.9
20.6		 3.43 3.43 14 9.7 46.0 46.0 55.9
1/2 31.2 22.23
21.73		 4.09 16.56
15.04		 26.9
20.6		 3.68 3.68 14 9.7 49.0 49.0 58.4
3/4 37.1 27.56
27.05		 4.27 21.69
20.17		 31.8
25.4		 4.06 4.06 11 12.7 56.9 56.9 66.0
1 45.5 34.20
33.78		 4.98 27.41
25.88		 34.3
26.2		 4.57 4.45 11 12.7 62.9 62.9 78.7
1-1/4 54.9 43.05
42.55		 5.28 35.81
34.29		 40.6
32.5		 5.33 5.21 11 12.7 71.1 71.1 94.0
1-1/2 61.5 49.15
46.64		 5.54 41.66
40.13		 42.2
34.0		 5.84 5.59 10 12.7 76.5 76.5 111.8
2 75.2 61.62
61.11		 6.05 53.26
51.74		 45.5
37.3		 6.60 6.35 10 15.7 86.1 86.1 132.1
2-1/2 91.7 74.45
73.01		 7.67 64.24
61.19		 64.24
61.19		 7.49 7.11 8 15.7 102.4 102.4 149.9
3 109.2 90.42
89.79		 8.31 79.45
76.40		 63.8
53.6		 8.26 8.00 8 15.7 109.0 109.0 175.3

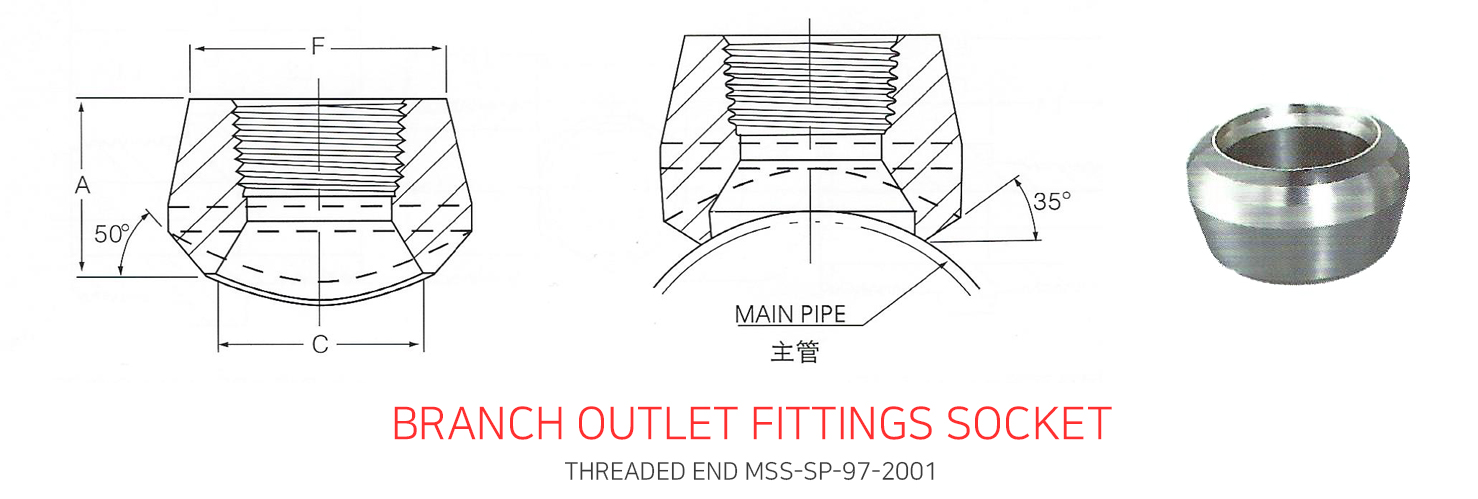

MSS-SP-97-2001

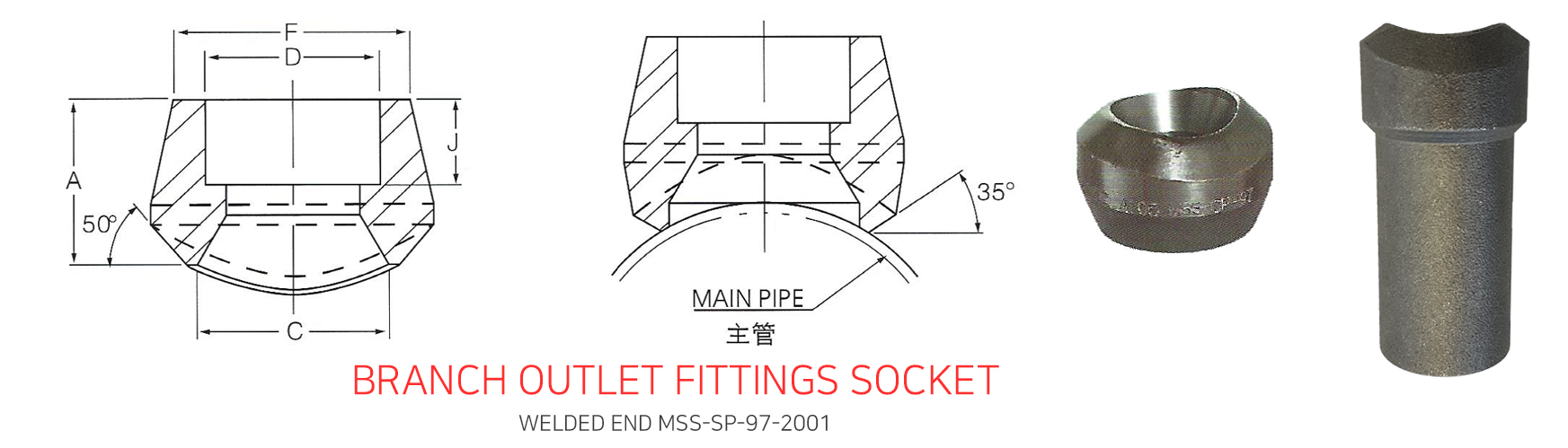

용접형소쿠레 (WELDED OUTLET)



3000 Lb Standard and extra strong
가지관규격(in) A C D F J (Min)
1/8 19.0 13.7 10.9 17.3 10.0
1/4 19.0 13.7 14.4 22.0 10.0
3/8 21.0 17.1 17.8 25.8 10.0
1/2 25.0 21.3 22.0 31.3 10.0
3/4 27.0 26.7 27.3 37.1 13.0
1 33.0 33.4 34.1 45.5 13.0
1-1/4 33.0 42.2 42.8 54.9 13.0
1-1/2 35.0 48.3 48.9 61.6 13.0
2 38.0 60.3 61.4 75.3 16.0
2 -1/2 46.0 73.0 74.2 91.7 16.0
3 51.0 88.9 90.1 109.1 16.0
4 57.0 114.3 115.8 137.2 19.0
6000 Lb Schedule 160 and double extra strong
가지관규격(in) A C D F J (Min)
1/2 32.0 16.6 22.0 33.9 10.0
3/4 37.0 21.2 27.3 41.2 13.0
1 40.0 27.0 34.1 49.9 13.0
1 -1/4 41.0 35.8 42.8 58.6 13.0
1 -1/2 43.0 41.2 48.9 66.7 13.0
2 52.0 51.6 61.4 83.2 16.0
(1) 소켓제원은 ASME B16.11에준함
(2) 나사사양은 ASME B1.20.1에준함

용접형소켓 허용공차표
Dimensional toleranc of forged socket welding fitting
litem Type of pipe fitting ND 6 to 8 10 to 20 25 to 50 65 to 100
NPS 1/8 to 1/4 3/8 to 3/4 1 to 2 2-1/2 to 4
Bore.diameter of socket(B) All types of
pipe fitings		 +0.3
-0		 +0.4
Bore.diameter of fitting(D) ±0.4 ±0.8
Centrioity of bore(X) ±0.8
Coin cadence of axes(Y)
Center to bottom of socket(A) 45,90D Elbow,Tee ±0.3 ±1.5 ±2 ±2.5
Bottom to bottom of socket(E) Full cupling ±1.5 ±3 土4 ±5
Bottom of socket to opposite face(F) Half coupling ±0.8 ±1.5 ±2 ±2.5

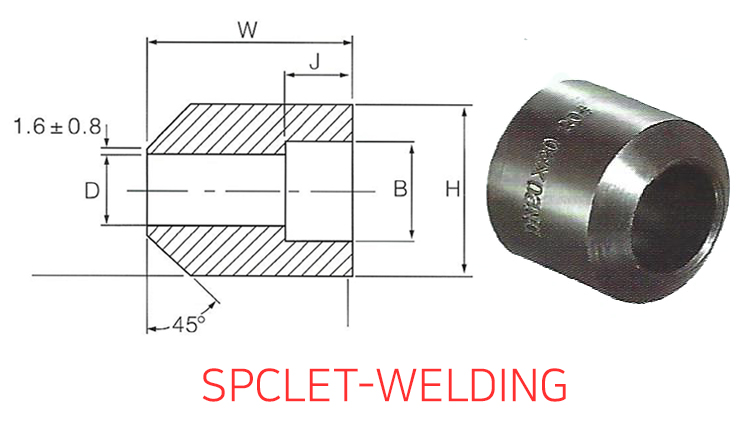

3000Lbs
Size
(in)		 B D J
(Min)		 W H
1/4 14.3 9.3 9.9 39.9 22.3
3/8 17.7 12.6 10.9 50.0 26.5
1/2 21.9 15.8 13.0 50.0 34.2
3/4 27.3 21.0 14.0 50.0 39.5
1 34.0 26.7 16.0 50.0 46.3
1-1/4 42.8 35.1 18.0 50.0 55.2
1-1/2 48.9 40.9 19.1 50.0 65.1
2 61.4 52.5 22.1 59.9 80.2
6000Lbs
Size
(in)		 B D J
(Min)		 W H
1/4 21.9 11.8 14.0 50.0 43.3
3/4 27.3 15.6 16.0 50.0 49.1
1 34.0 20.7 18.0 50.0 56.0
1-1/4 42.8 29.5 19.1 50.0 65.2
1-1/2 48.9 34.0 22.0 50.0 80.1
2 61.4 42.9 25.9 59.9 95.1

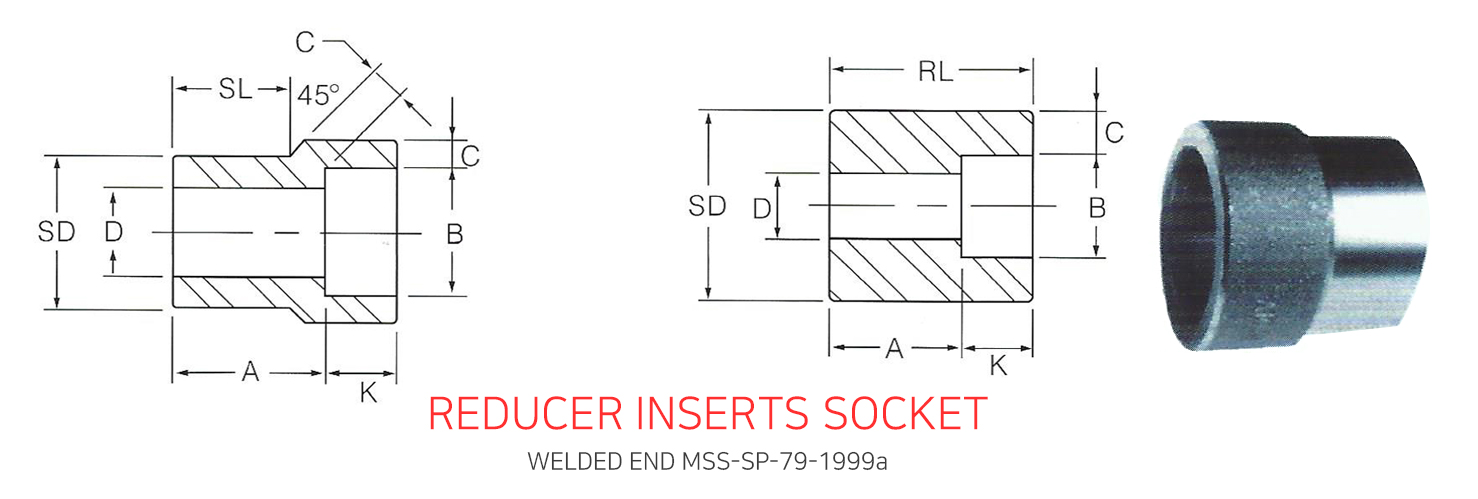

관규격 Type(1) 소켓 SD A D C 길이
3M 6M B min
K		 3M 6M 3M 6M 3M 6M 3M 6M 3M 3M
3/8x1/4 1 1 14.35 10 17.15 19 21 9.9 6.5 3.78 4.60 14 16
1/2x3/8 1 1 17.78 10 21.34 21 23 12.5 9.0 4.01 5.03 16 16
1/2x1/4 1 1 14.35 10 21.34 21 21 9.0 6.5 3.78 4.60 16 16
3/4x1/2 1 1 21.97 10 26.67 22 25 16.0 11.5 4.67 5.97 17 19
3/4x3/8 2 1 17.78 10 26.67 16 22 12.5 9.0 4.01 5.03 19 27
3/4x1/4 2 2 14.35 10 26.67 18 22 9.0 6.5 3.78 4.60 27 32
1x3/4 1 1 27.31 13 33.40 24 28 21.0 15.5 4.90 6.96 19 21
1x1/2 2 1 21.97 10 33.40 16 28 16.0 11.5 4.67 5.97 21 28
1x3/8 2 2 17.78 10 33.40 18 22 12.5 9.0 4.01 5.03 28 33
1x1/4 2 2 14.35 10 33.40 19 24 9.0 6.5 3.78 4.60 28 33
1-1/4x1 1 1 34.04 13 42.16 25 30 26.5 20.5 5.69 7.92 21 22
1_1/4x3/4 2 2 27.31 13 42.16 18 21 21.0 15.5 4.90 6.96 32 35
1-1/4x1/2 2 2 21.97 10 42.16 19 22 16.0 11.5 4.67 5.97 32 35
1-1/4X3/8 2 2 17.78 10 42.16 21 24 12.5 9.0 4.01 5.03 32 35
1_1/4x1/4 2 2 14.35 10 42.16 22 25 9.0 6.5 3.78 4.60 32 35
1-1/2X1-1/4 1 1 42.80 13 48.26 28 35 25.0 29.5 6.07 7.92 22 25
1-1/2x1 2 1 34.04 13 48.26 18 29 26.5 20.5 5.69 7.92 25 33
1-1/2x3/4 2 2 27.31 13 48.26 19 25 21.0 15.5 4.90 6.96 33 40
1-1/2x1/2 2 2 21.97 10 48.26 21 27 16.0 11.5 4.67 5.97 33 40
1-1/2x3/8 2 2 17.78 10 48.26 22 28 12.5 9.0 4.01 5.03 33 40
2x1-1/2 1 1 48.90 13 60.32 32 39 41.0 34.0 6.35 8.90 25 28
2x1-1/4 2 2 42.80 13 60.32 21 24 35.0 29.5 6.07 7.92 38 41
2x1 2 2 34.04 13 60.32 22 25 26.5 21.0 5.69 7.92 38 41
2x3/4 2 2 27.31 13 60.32 24 27 21.0 15.5 4.90 6.96 38 41
2x1/2 2 2 21.97 10 60.32 25 28 16.0 11.5 4.67 5.97 38 41

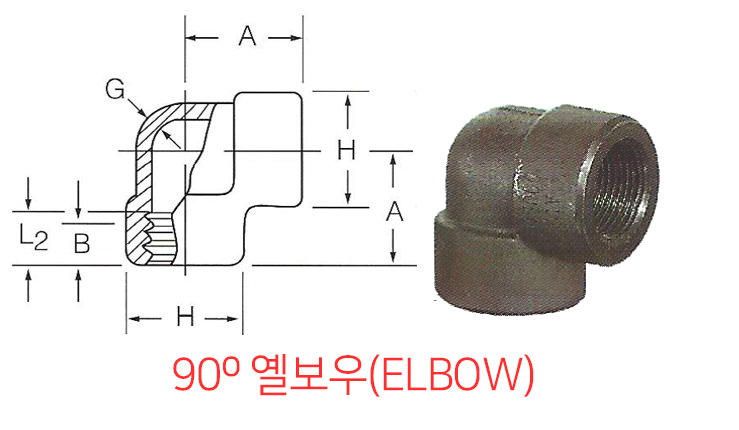

ASME B16.11-2005(ASME B16.11-2001의수정본)

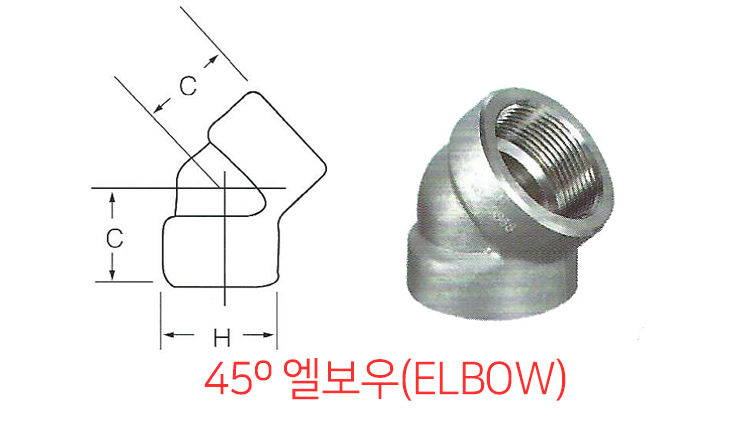

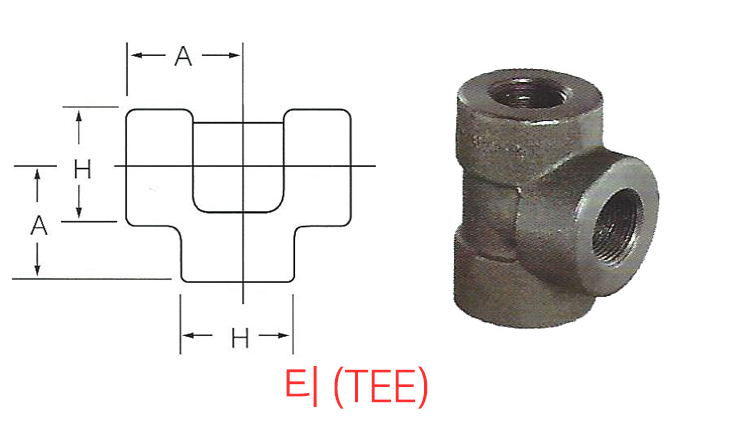

관규격 90° 엘보, 티, 크로스90°
Elbows tees,CrossesA		 45° 엘보 중심에서 소켓의 바닥면까지거리
C		 밴드 외경 H 최소 두께
G		 나사길이 .(1)
DN Nom.
Pipe
Size		 2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000 B L2
6 1/8 21 21 25 17 17 17 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.5
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.19 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1-1/4 44 51 60 33 35 43 56 62 75 3.89 5.25 10.59 17.0 18.0
40 1-1/2 51 60 64 35 35 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 84 102 4.27 4.01 12.09 19.0 19.2
65 2-1/2 76 83 95 52 52 64 76 146 121 5.61 7.65 15.29 23.6 28.9
80 3 86 95 106 64 64 79 119 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 11.18 27.7 33.0

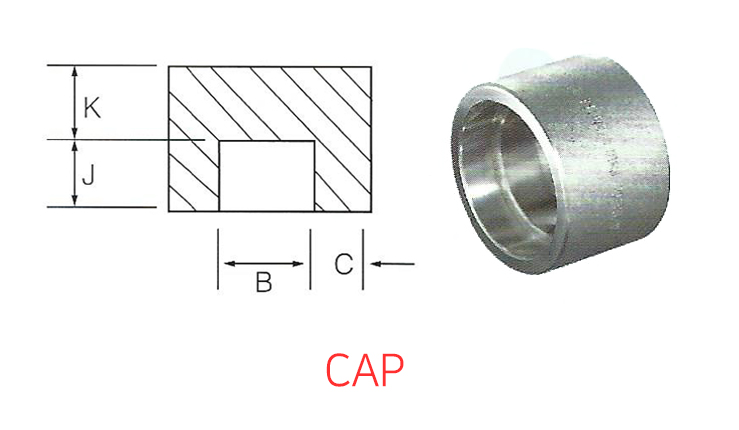

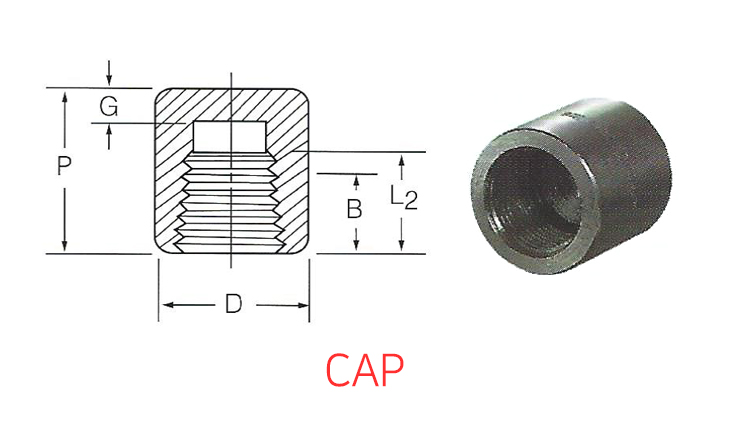

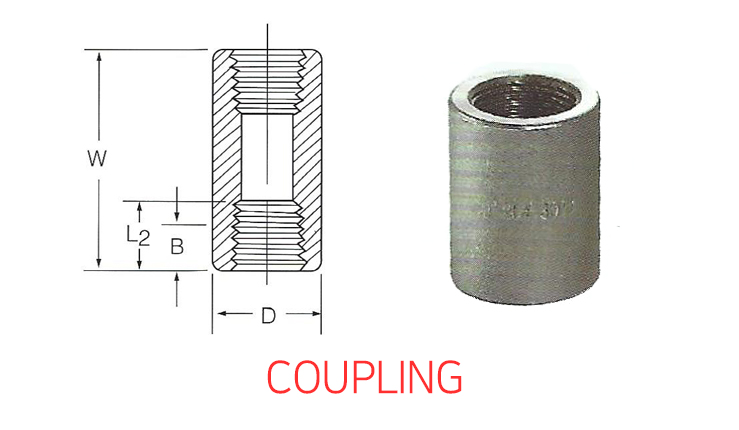

관규격 커프링전장
W		 캡전장
P		 외경
D		 바닥면두께
G(Min.)		 나사길이
(Min)(1)
DN Nom.
Pipe
Size		 3000&6000 3000 6000 3000 6000 3000 6000 B L2
6 1/8 32 19 … 16 22 4.8 ... 6.4 6.7
8 1/4 35 25 27 19 25 4.8 6.4 8.1 10.2
10 3/8 38 25 27 22 32 4.8 6.4 9.1 10.4
15 1/2 48 32 33 28 38 6.4 7.9 10.9 13.6
20 3/4 51 37 38 35 44 6.4 7.9 12.7 13.9
25 1 60 41 43 44 57 9.7 11.2 14.7 17.3
32 1-1/4 67 44 46 57 64 9.7 11.2 17.0 18.0
40 1-1/2 79 44 48 64 76 11.2 12.7 17.8 18.4
50 2 86 48 51 76 92 12.7 15.7 19.0 19.2
65 2-1/2 92 60 64 92 108 15.7 19.0 23.6 28.9
80 3 108 65 68 108 127 19.0 22.4 25.9 30.5
100 4 121 68 75 140 159 22.4 28.4 27.7 33.0

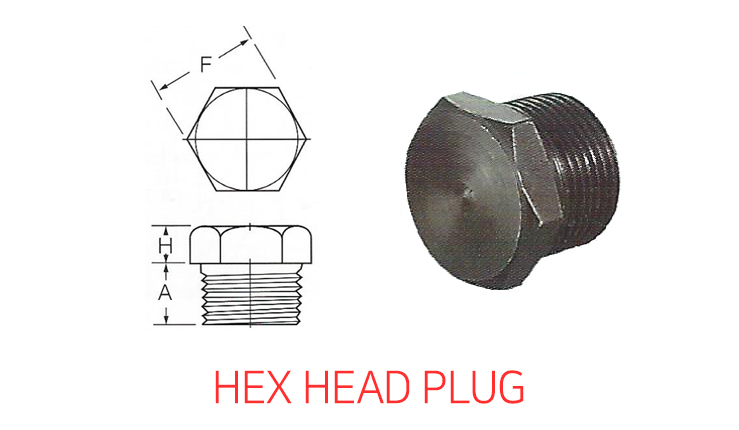

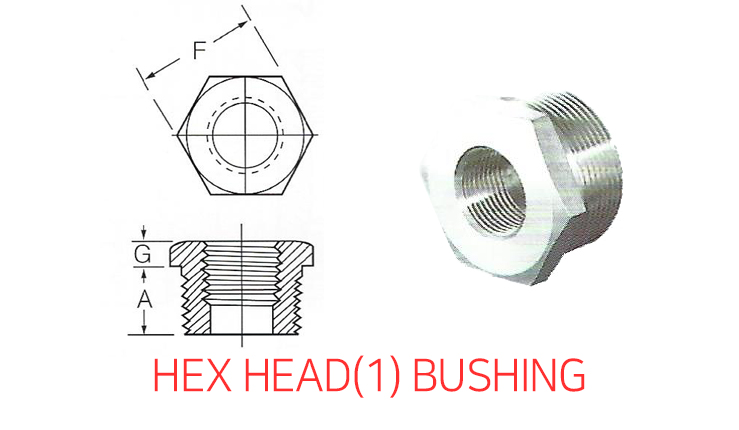

ASME B16.11-2005(ASME B16.11-2001의수정본)
관규격 길이
(Min.)

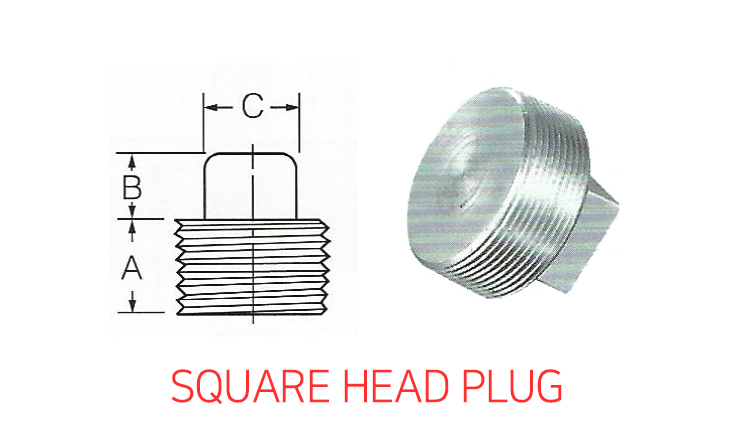

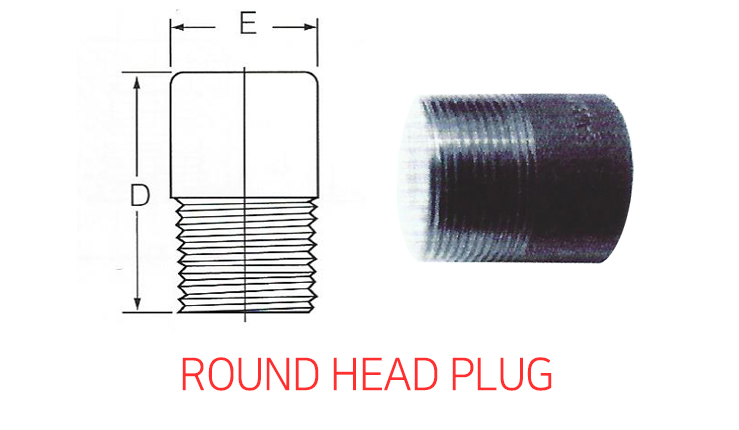

A		 육각머리 둥근머리 플러그 & 부싱
육각높이
(Min.)
B		 면간거리
(Min.)
C		 둥근머리외경
E		 길이
(Min.)
D		 면간거리
(Nom)
F		 Hex Height (Min.)
DN Nom.
Pipe

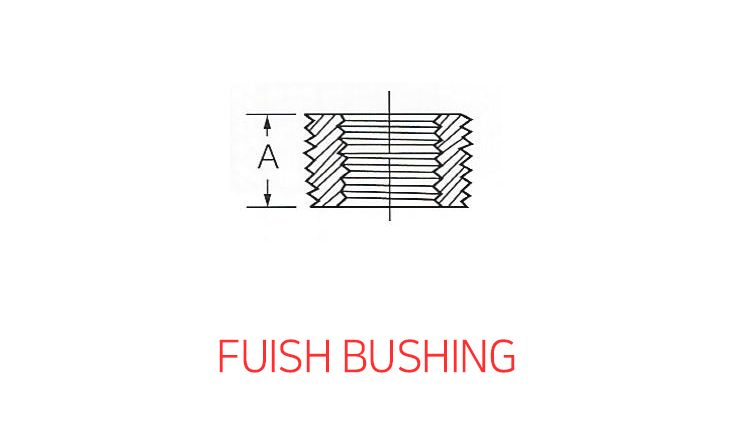

Size		 내외부나사부싱
G		 프러그
H
6 1/8 10 6 7 10 35 11 … 6
8 1/4 14 6 10 14 41 16 3 6
10 3/8 13 8 11 18 41 18 4 8
15 1/2 14 10 14 24 44 22 5 8
20 3/4 16 11 16 27 44 27 6 10
25 1 19 13 21 33 51 36 6 10
32 1-1/4
 21 14 24 43 51 46 7 14
40 1-1/2 21 16 28 48 51 50 8 16
50 2 22 18 32 60 64 65 9 18
65 2-1/2 27 19 36 73 70 75 10 19
80 3 28 21 41 89 70 90 10 21
100 4 32 25 65 114 76 115 13 25

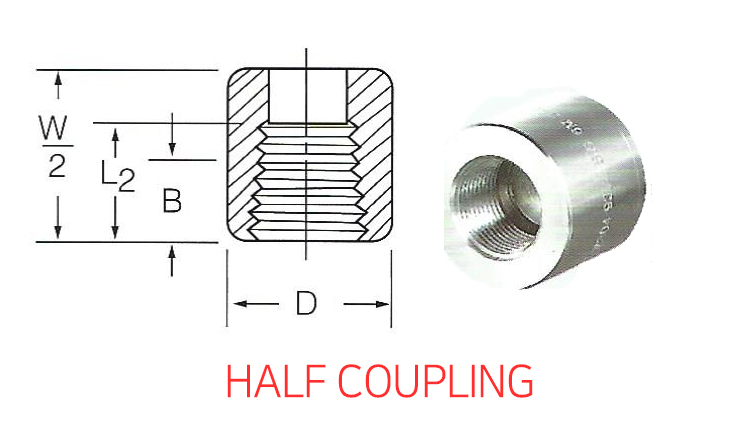

3000Lbs
Size (in) D W L2 (Min)
1/4 22.1 39.9 10.0
3/8 25.9 50.0 10.5
1/2 34.0 50.0 13.5
3/4 39.1 50.0 14.0
1 48.0 50.0 17.5
1-1/4 59.9 50.0 18.0
1-1/2 65.0 50.0 18.5
2 80.0 59.9 19.0
6000Lbs
Size (in) D W L2 (Min)
1/4 25.9 39.9 10.0
3/8 36.0 50.0 10.5
1/2 43.9 50.0 13.5
3/4 50.0 50.0 14.0
1 59.9 50.0 17.5
1-1/4 65.0 50.0 18.0
1 -1/2 80.0 50.0 18.5
2 95.0 59.0 19.0

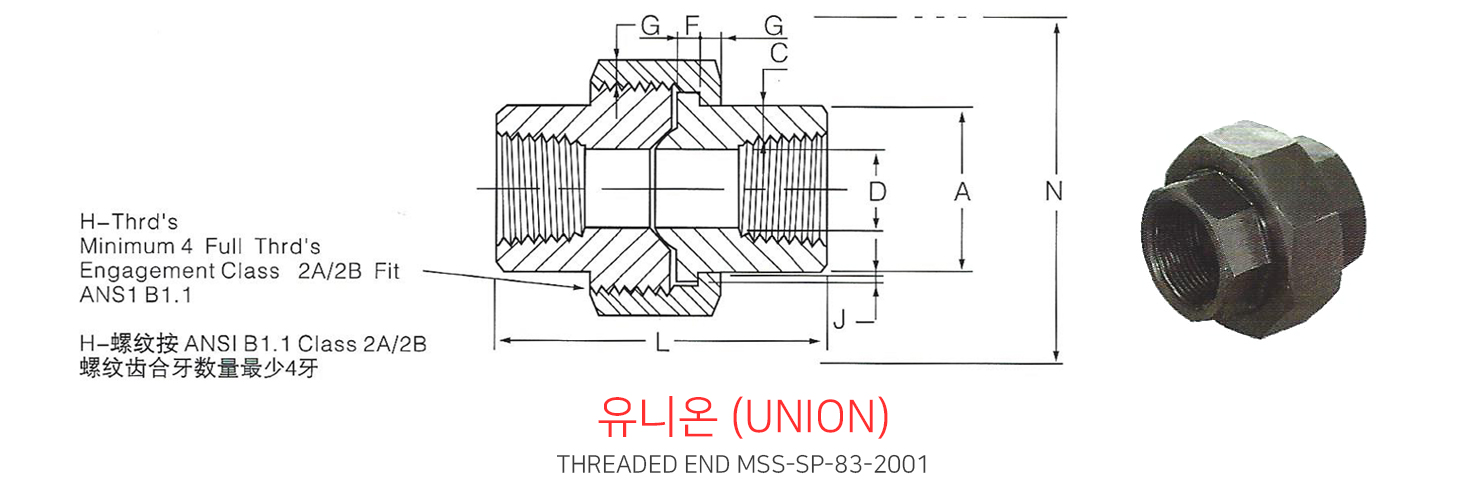

THREADED END MSS-SP-83-2001
관규격 A C D F G H J D N
1/8 14.7 2.41 8.43
6.43		 3.18 3.18 16 1.24 41.4 50.8
1/4 19.0 3.02 11.43
9.45		 3.18 3.18 16 1.24 41.4 50.8
3/8 22.9 3.20 14.27
13.51		 3.43 3.43 14 1.37 46.0 55.9
1/2 27.7 3.73 17.86
17.07		 3.68 3.68 14 1.50 49.0 58.4
3/4 33.5 3.91 23.01
21.39		 4.06 4.06 　 1.68 56.9 66.0
1 41.4 4.55 28.98
27.74		 4.57 4.45 11 1.85 62.9 78.7
1-1/4 50.5 4.85 37.69
35.36		 5.32 5.21 11 2.13 71.1 94.0
1-1/2 57.2 5.08 43.54
41.20		 5.84 5.59 10 2.31 76.5 111.8
2 70.1 5.54 55.58
52.12		 6.60 6.35 10 2.69 86.1 132.1
2-1/2 85.3 7.01 66.27
64.31		 7.40 7.11 8 3.07 102.4 149.9
3 102.4 7.62 86.25
77.27		 8.26 8.00 8 3.53 109.0 175.3
MSS-SP-97-2001
나사형소쿠레 (THREADED OUTLET)



3000PSI STD/xs
3000 Lb Standard and extra strong
가지관규격(in) A C F
1/8 19.0 13.7 17.3
1/4 19.0 13.7 22.0
3/8 21.0 17.1 25.8
1/2 25.0 21.3 31.3
3/4 27.0 26.7 37.1
1 33.0 33.4 45.5
1-1/4 33.0 42.2 54.9
1 - 1/2 35.0 48.3 61.6
2 38.0 60.3 75.3
2-1/2 46.0 73.0 91.7
3 51.0 88.9 109.1
4 57.0 114.3 137.2
6000PSI S160/xxs
6000 Lb Schedule 160 and double extra strong
가지관규격(in) A C F
1/2 32.0 16.6 33.9
3/4 37.0 21.2 41.2
1 40.0 27.0 49.9
1 -1/4 41.0 35.8 58.6
1 -1/2 43.0 41.2 66.7
2 52.0 51.6 83.2
(1) 소켓제원은 ASME B16.11에준함
(2) 나사사양은 ASME B1.20.1에준함
ANSI / ASME B1.20-1983-NPT

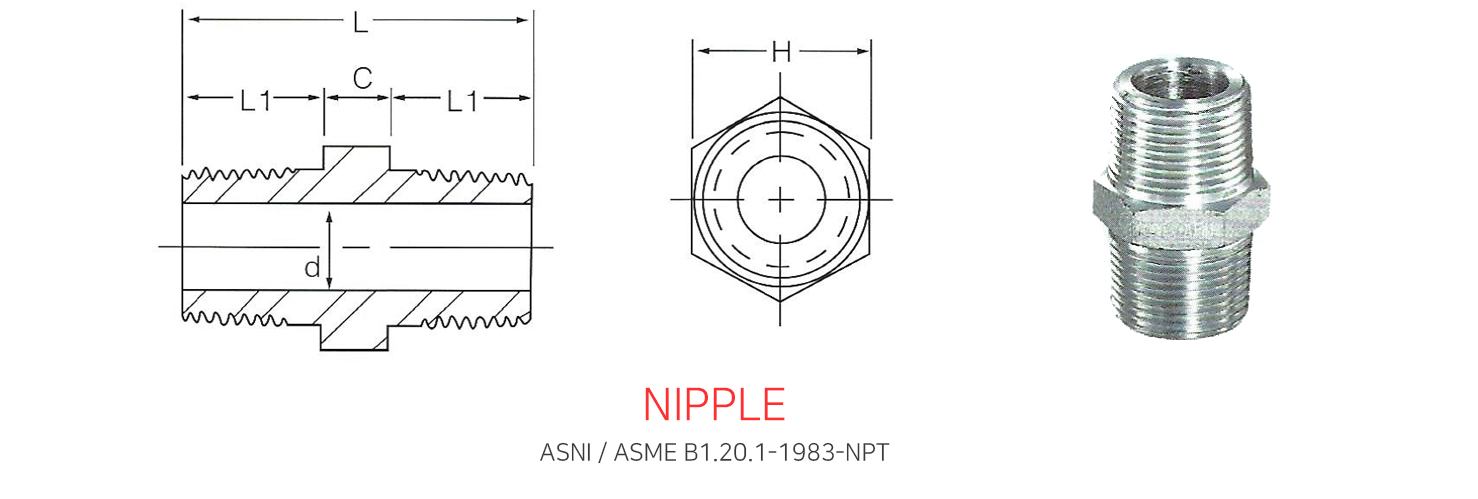

육각닛블(HEX NIPPLE)
닛블(스탠다드형)
관규격 C L1 L d H
3M 6M
1/8 6.0 10.0 26.0 4.0 - 12.0
1/4 8.0 14.0 36.0 6.4 - 17.0
3/8 8.0 14.0 36.0 9.2 4.3 19.0
1/2 9.0 19.0 47.0 11.8 6.4 24.0
3/4 10.0 19.0 48.0 15.6 11.1 30.0
1 11.0 24.0 59.0 20.7 15.2 35.0
1-1/4 12.0 24.0 60.0 29.5 22.8 46.0
1-1/2 14.0 24.0 62.0 34.0 28.0 50.0
2 16.0 26.0 68.0 42.9 38.2 65.0
2-1/2 18.0 38.0 94.0 53.8 - 80.0
3 20.0 40.0 100.0 66.5 - 95.0
4 24.5 40.0 105.0 87.3 - 125.5
닛블(컴팩트형)
관규격 C L1 L2 L d H
3M 6M
3/8x1/4 8.0 14.0 14.0 36.0 6.4 - 19.0
1/2x1/4 9.0 19.0 14.0 42.0 6.4 - 24.0
1/2x3/8 9.0 19.0 14.0 42.0 9.2 4.3 24.0
3/4x1/4 10.0 19.0 14.0 43.0 6.4 - 30.0
3/4x3/8 10.0 19.0 14.0 43.0 9.2 4.3 30.0
3/4x1/2 10.0 19.0 19.0 48.0 11.8 6.4 30.0
1x3/8 11.0 24.0 14.0 49.0 9.2 4.3 35.0
1x1/2 11.0 24.0 19.0 54.0 11.8 6.4 35.0
1x3/4 11.0 24.0 19.0 54.0 15.6 11.1 35.0
1-1/4x1/2 12.0 24.0 19.0 55.0 11.8 6.4 46.0
1-1/4x3/4 12.0 24.0 19.0 55.0 15.6 11.1 46.0
1-1/4x1 12.0 24.0 24.0 60.0 20.7 15.2 46.0
1-1/2x3/4 14.0 24.0 19.0 57.0 15.6 11.1 50.0
1 - 1/2x1 14.0 24.0 24.0 62.0 20.7 15.2 50.0
1-1/2X1-1/4 14.0 24.0 24.0 62.0 29.5 22.8 50.0
2x1 16.0 26.0 24.0 66.0 20.7 15.2 65.0
2x1-1/4 16.0 26.0 24.0 66.0 29.5 22.8 65.0
2x1-1/2 16.0 26.0 24.0 66.0 34.0 28.0 65.0
2-1/2x1-1/4 18.0 38.0 24.0 80.0 29.5 22.8 80.0
2-1/2x1-1/2 18.0 38.0 24.0 80.0 34.0 28.0 80.0
2-1/2x2 18.0 38.0 26.0 82.0 42.9 38.2 80.0
3x1-1/2 20.0 40.0 24.0 84.0 34.0 28.0 95.0
3x2 20.0 40.0 26.0 86.0 42.9 38.2 95.0
3x2-1/2 20.0 40.0 38.0 98.0 53.8 - 95.0
파이프 규격 (SEAMLESS, STAINLESS SEAMLESS PIPE)
( ASME B36.10M---2004, ASME B36.19---2004)
치수공차
TOLERANCES 		파이프
규격
NPS
IN		 외경
OutsideDia.		 강관
STEEL PIPE		 스텐레스스틸
ST.ST PIPE
A53
A106
O.D.		 API 5L
O.D.		 A530
O.D.		 두께
Wall Thickness		 두께
Wall Thickness
STD MAX MIN S/10 S/20 S/30 S/40 STD S/60 XS S/80 S/100 S/120 S/140 S/160 XXS S/5S S/1 OS S/40S MAX S/80S
+1/64"
-1/32" 		+1/64"
-1/32" 		+1/64"
-1/32" 		1/8 10.3 10.7 9.5 1.2 1.5 1.7 S/40 S/80 2.4 3.2 4.8 1.2 1.7 2.4
1/4 13.7 14.1 12.7 1.7 1.9 2.2 S/40 S/80 3.0 3.7 6.1 1.7 2.2 3.0
3/8 17.1 17.5 16.3 1.7 1.9 2.3 S/40 S/80 3.2 4.0 6.4 1.7 2.3 3.2
1/2 21.3 21.7 20.5 2.1 2.4 2.8 S/40 S/80 3.7 4.7 7.5 1.7 2.1 2.8 3.7
3/4 26.7 27.1 25.9 2.1 2.4 2.9 S/40 S/80 3.9 5.5 7.8 1.7 2.1 2.9 3.9
1 33.4 33.8 32.8 2.8 2.9 3.4 S/40 S/80 4.5 6.4 9.1 1.7 2.8 3.4 4.5
1-1/4 42.2 42.6 41.4 2.8 3.0 3.6 S/40 S/80 4.9 6.4 9.7 1.7 2.8 3.6 4.9
1-1/2 48.3 48.7 47.5 2.8 3.2 3.7 S/40 S/80 5.1 7.1 10.2 1.7 2.8 3.7 5.1
±1% +1/32" -1/32" 2 60.3 60.9 59.7 2.8 3.2 3.9 S/40 S/80 5.5 8.7 11.1 1.7 2.8 3.9 5.5
±0.75% 2-1/2 73.0 73.7 72.2 3.1 4.8 5.5 S/40 S/80 7.0 9.5 14.0 2.1 3.0 5.2 7.0
3 88.9 89.8 88.0 3.1 4.8 5.5 S/40 S/80 7.6 11.1 15.2 2.1 3.0 5.5 7.6
3-1/2 101.6 102.6 100.6 3.1 4.8 5.7 S/40 S/80 8.1 2.1 3.0 5.7 8.1
4 114.3 115.4 113.2 3.1 4.8 6.0 S/40 S/80 8.6 11.1 13.5 17.1 2.1 3.0 6.0 8.6
+1/16"
-1/32" 		5 141.3 142.7 139.9 3.4 6.6 S/40 S/80 9.5 12.7 15.9 19.1 2.8 3.4 6.6 9.5
6 168.3 170.0 166.6 3.4 7.1 S/40 S/80 11.0 14.3 18.2 21.9 2.8 3.4 7.1 11.0
8 219.1 221.3 216.9 3.8 6.4 7.0 8.2 S/40 10.3 S/80 12.7 15.1 18.2 20.6 23.0 22.2 2.8 3.8 8.2 12.7
+3/32"
-1/32" 		10 273.0 275.8 270.4 4.2 6.4 7.8 9.3 S/40 12.7 S/60 15.1 18.2 21.5 25.4 28.6 S/140 3.4 4.2 9.3 12.7
12 323.8 327.1 320.7 4.6 6.4 8.4 10.3 9.5 14.3 12.7 17.4 21.4 25.4 28.6 33.3 S/120 4.0 4.6 9.5 12.7
14 355.5 359.2 352.0 6.4 7.9 9.5 11.1 S/30 15.1 12.7 19.1 23.8 27.8 31.8 35.7 4.0 4.8 9.5 12.7
16 406.4 410.5 402.3 6.4 7.9 9.5 12.7 S/30 16.7 S/40 21.4 26.2 30.9 36.5 40.5 4.2 4.8 9.5 12.7
18 457.0 461.8 452.6 6.4 7.9 11.1 14.3 9.5 19.1 0.50 23.8 29.4 24.9 39.7 45.2 4.2 4.8 9.5 12.7
+0.15%
-0.25% 		+1/8"
-1/32" 		20 508.0 513.1 502.9 6.4 9.5 12.7 15.1 S/20 20.8 S/30 26.2 32.5 38.1 44.5 50.0 4.8 5.5 9.5 12.7
24 610.0 615.7 603.5 0.25 9.5 14.3 17.4 S/20 24.6 12.7 30.9 38.9 46.0 52.4 59.5 5.5 6.4 9.5 12.7
TOP
(주)엡코코리아 / 대표자 : 최광호 / 사업자번호: 119-81-14957 / e-mail : master@epcokorea.com/marketing@epcokorea.com
경기 시흥시 엠티브이 27로 20번길 16 (2사-702호) (정왕동, 시화MTV 2사) / TEL : 031-432-9100 / FAX : 031-432-9105
 copyright (c) 2018 epco all rights reserved
